Long Range Electrical Resistivity meter
  • Model:
    ADMT-1B
  • Features:
    ADMT-1B electrical resistivity water-finding instrument is a new type of electrical water-finding instrument comprehensively improved and upgraded based on the company's reference to domestic and foreign electrical methods. It uses new design and componen

    High Accuracy. using the most advanced circuit design, single chip microcomputer control, automatic noise reduction,digital filtering to highly improve survey accuracy and stability.

    Easy to operate.humanized man-machine interface, built-in all kinds of formulas to read VP, IP, RO, M, TH... parameters.

    More Parameters.could measure VP, SP, RO, M, TH....

    Complete Equipment.four poles to detect depth, intermediate gradient, combined profile, five poles, three poles etc....about 30 kinds.


    49 Years Research and Development


    Stable       Accurate



    Free upgrading at the original price after purchasing within six months

    ADMT-1B electrical resistivity water-finding instrument is a new type of electrical water-finding instrument comprehensively improved and upgraded based on the company's reference to domestic and foreign electrical methods. It uses new design and components, greatly improves the measurement accuracy, and is friendly in Chinese. Human-machine interface, ABS waterproof housing, etc., can realize multiple pole layout methods such as four-pole sounding and intermediate gradient.




    Brand new
    upgrade


    Accurate
    & Stable


     Fully
    Equipped


    Simple
    Operation



    MEET YOUR VARIOUS NEEDS


    Iron Mineral Exploration


    Water Source Survey


    Environmental Census


    Engineering Investigation


    Widely used for detailed survey and general survey exploration of underground water sources, minerals and other resources

    It is widely used in hydrology, environmental protection, engineering geophysical prospecting and other fields


    SIX ADVANTAGES
    TO HELP YOU EXPLORE WORRY-FREE

    High precision

    01.jpgAdopting new circuit design, single-chip control, automatic noise reduction, and digital filtering to greatly improve measurement accuracy and stability

    Simple operation

    02.jpgHumanized man-machine interface, built-in formulas for various devices to directly read resistivity

    Fully equipped

    03.pngIt can realize a variety of layout methods such as quadrupole sounding and intermediate gradient

    Safe and reliable

    2-4-1b-zs.pngOvervoltage, overcurrent, battery protection and power display, data power-down protection functions, etc.

    Perfect after-sales

    10.pngReport by computer

    Expert online data analysis

    Patented product

    11.pngObtained multiple invention patents

    (Patent No.: ZL201310205318.9, ZL201110454869.X, ZL201320054153.5, ZL201320303919.9)


    BEAUTIFUL IN SHAPE

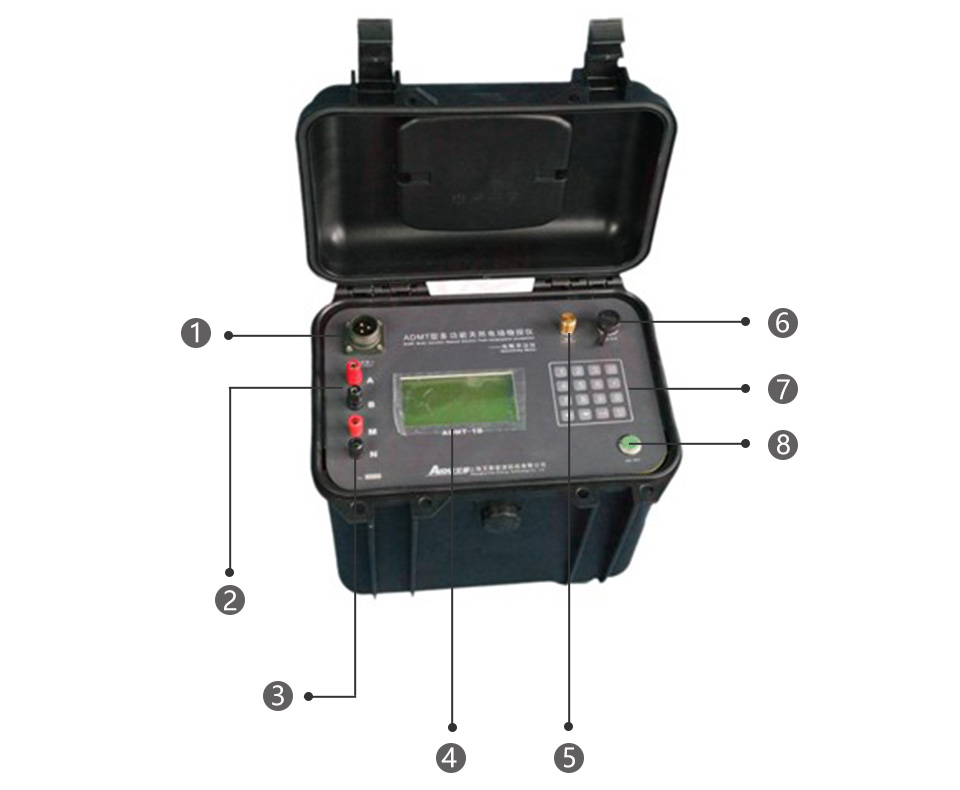

    ① Power connector    ② Power supply AB terminals    ③ MN Measurement terminals    ④ LCD screen     ⑤ Brightness adjustment     ⑥ USB interface     ⑦ Keyboard    ⑧ Swtich



    MAIN MODELS
    AND TECHNICAL PARAMETERS

    ParameterADMT-1B
    Voltage
    measurement range
    -2500mV~+2500mV
    Voltage resolution0.01uV
    Input impedance≥50MΩ
    SP compensation range±2500mV
    Current channel6A, ±4% ±1 word
    Current resolution0.02uA
    Suppress 50Hz power
    frequency interference
    Better than 80dB
    Max. transmit power6000W
    Upper limit
    of supply voltage
    1000V
    Upper limit
    of supply current
    6A
    Power supply waveformPulse width 1-60 seconds, duty ratio 1:1, bipolar
    RAM2GB (support 32GB expansion)
    Power supply14.8V 5200mAH lithium battery
    Working environment-20℃~+60℃,95%Rh



    SERVING DOZENS OF COUNTRIES AROUND
    THE WORLD, WELL RECEIVED BY USERS


    PROFESSIONAL TEAM


    QUALIFICATION CERTIFICATE

    Certificates and Awards: CE, ISO,  China National High-tech Enterprise, China National Technical Invention Patent


    DEVELOPMENT HISTORY

    1973: Developed the domestic short-wire D75 electrical method
    1977: Developed an aerial proton magnetometer
    1981: Developed domestic resistivity DW83 electrical method
    1988: Developed a multi-functional high-power electric method
    2001: Developed the NEP series of natural electric field geophysical probes
    2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
    2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
    2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
    2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function





    Two-year
    Warranty


    Lifetime
    After-sales


    Professional
    Advisors


    Free
    Upgrade
