Model:

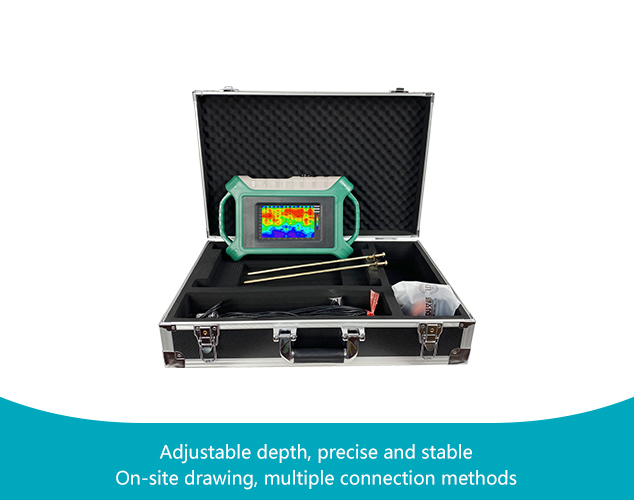

Depth can be adjusted, the number of channels can be selected, optional electromagnetic probe
-
Features:
The 32-channel real-time imaging water finder is a real-time imaging intelligent water finder jointly developed with the Guilin Institute of Technology Hydrogeological Survey. 32 channels of simultaneous input measurements are used to obtain a stable fiel
Main advantages：

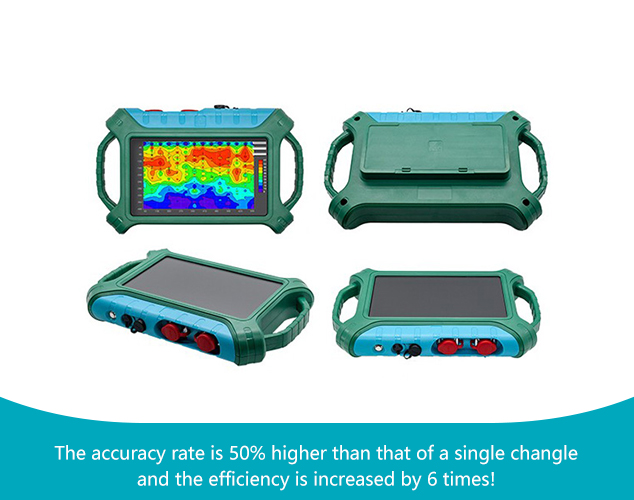

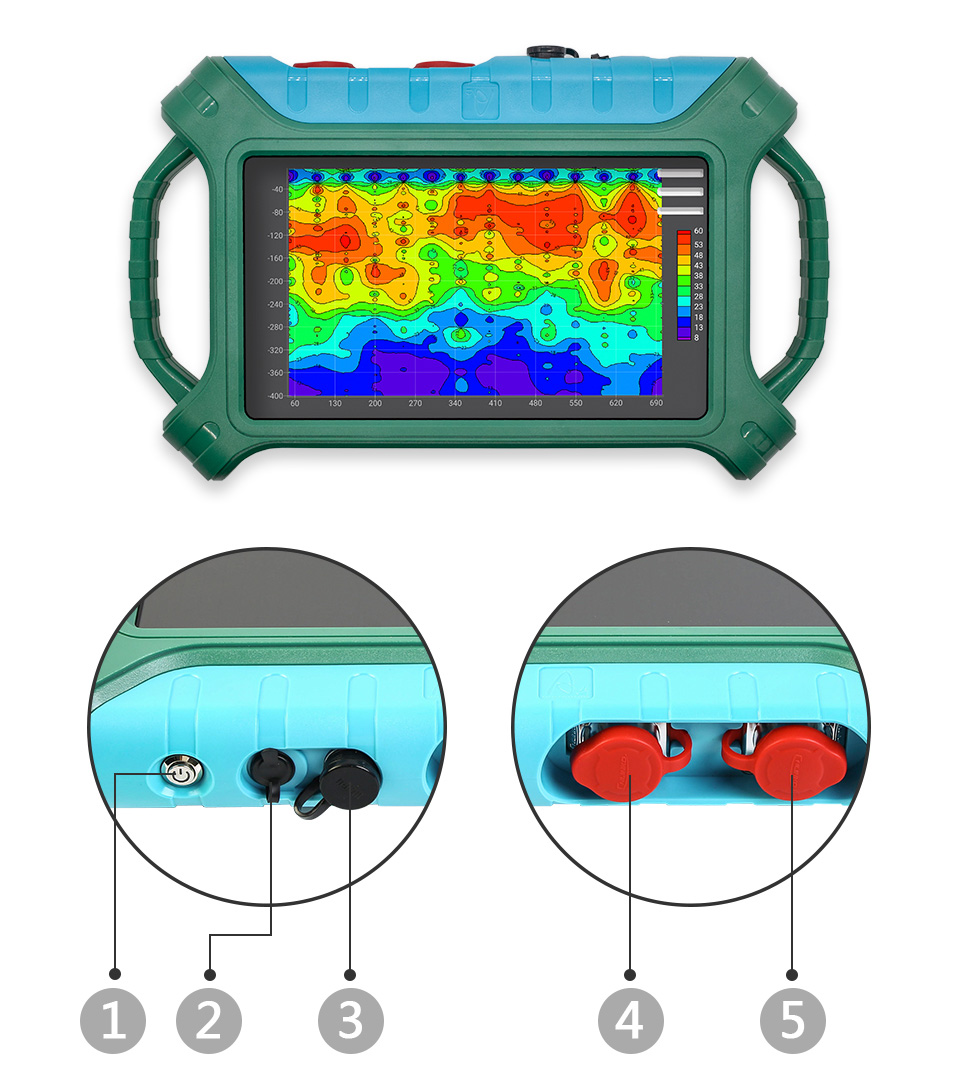

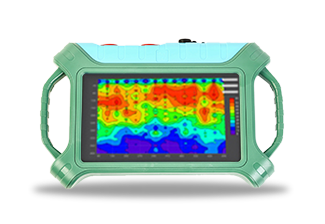

Automatic imaging：The 10.1" Android touch screen is intelligent in real time into 2D, 3D and curved images.
Precise and stable：The disadvantages of natural electromagnetic field sources, which are inconsistent in size and change from time to time, are solved and the accuracy is greatly improved.

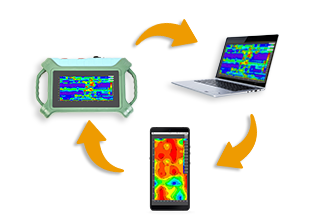

Triple screen interoperability：The instrument screen, mobile phone screen and computer screen are interoperable.

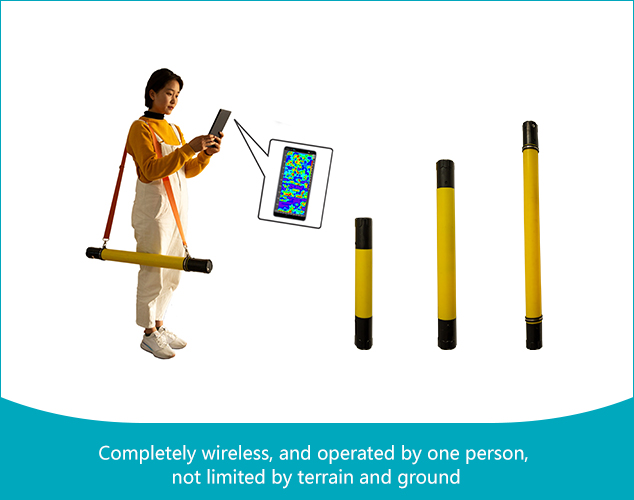

Intelligent and flexible：1-30 channels available and optional electromagnetic probe for TT probe measurement mode, also supports wireless connection to the water finding gold band.
The 32-channel real-time imaging water finder is a real-time imaging intelligent water finder jointly developed with the Guilin Institute of Technology Hydrogeological Survey. 32 channels of simultaneous input measurements are used to obtain a stable field source, which not only solves the problem of the natural electric field changing at any time, but also avoids the errors caused by moving the electrodes several times in the same profile and solves the shortcomings of single-channel instruments with different repeated measurement data profiles.

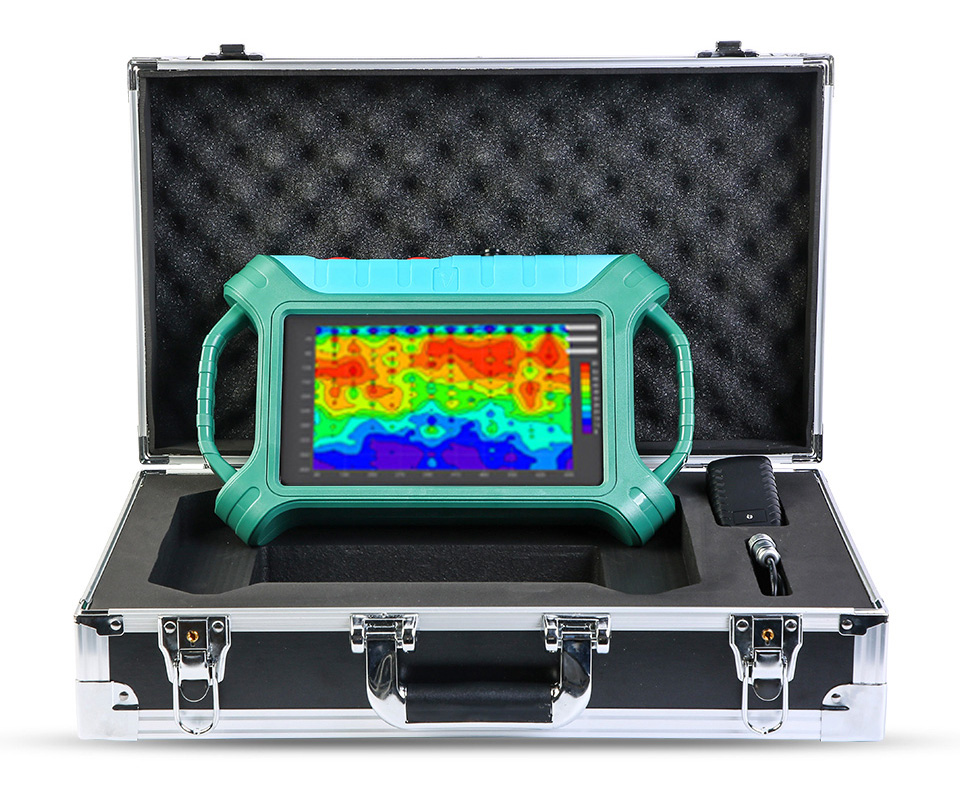

The 32-channel real-time imaging water finder is equipped with a 10.1-inch Android system touch screen for real-time imaging as standard, and the instrument screen, mobile phone screen and computer screen are interoperable. 1-30 measurement channels are available, and the optional wireless probe or water finding gold band can be switched between MN electrode and TT probe measurement modes, which is very convenient for field operation and has been widely accepted by customers.
It has been listed to obtain several invention patents (Patent No. ZL201310205318.9, ZL201110454869.X, 201320054153.5, ZL201320303919.9) and has been recognized as a high-tech achievement transformation project in Shanghai.

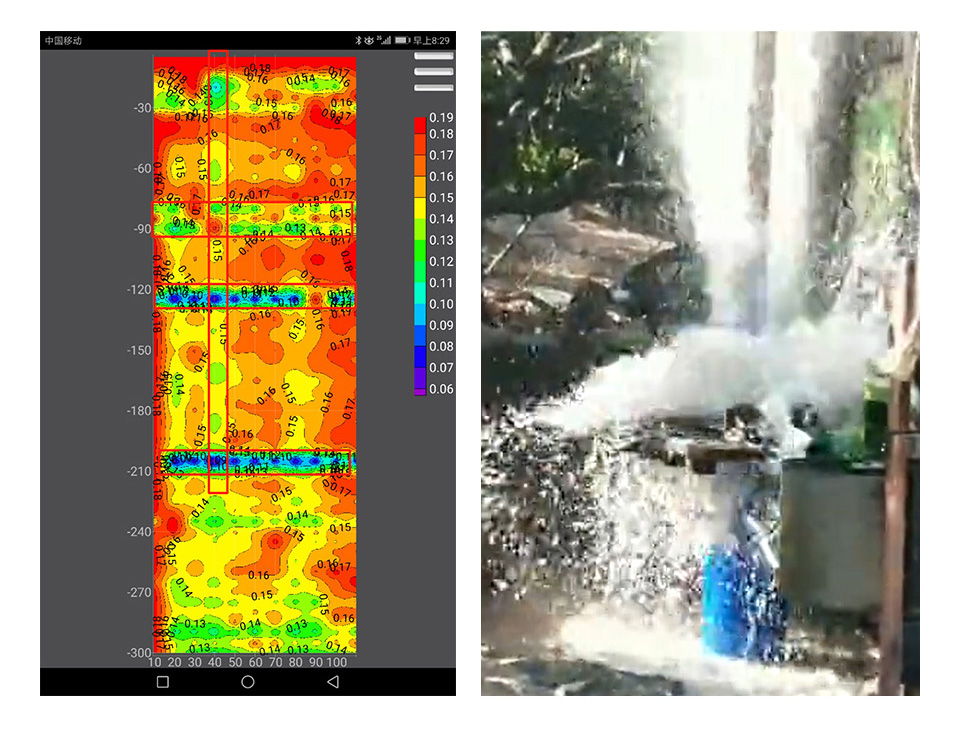

Main uses：To determine the location, depth and volume of groundwater and other relevant information to guide the drilling and extraction of water and other operations to improve the success rate of the well. Detailed investigation and census of regional hydrogeology.
TECHNICAL PARAMETERS
| Versions | ADMT-400SX-32D | ADMT-600SX-32D | ADMT-1200SX-32D | ADMT-3000SX-32D | ADMT-4000SX-32D |
|---|---|---|---|---|---|
| Max Depth(m) | ≤400 | ≤600 | ≤1200 | ≤3000 | ≤4000 |
| Channel Input | 32 channels of simultaneous input with a standard electrode spacing of 2.5m, and optional spacings of 5m, 7.5m, or 10m | ||||
| Channel Options | 1-30 | ||||
| Depth Options | 100/200/300/400/500/600/800/1200/2000/3000/4000m | ||||
| Scan Resolution | 40-160 | ||||
| Connection | Serial port, WiFi, Bluetooth 4.0, USB(optional 4G) | ||||
| Display | 10.1 -inch, IPS wide Angle, 178° visual touch screen (1024×600) | ||||
| OS | Android 6.0.1, RAM 1GB, ROM 8GB (expandable 128GB) | ||||
| CPU | ARM Cortex-A7, 8-core CPU, 2.0Hz | ||||
| GPU | OpenGL ES 2.0 | ||||
| Core Features | Flexible depth options, customizable channel number options, real-time 2D/3D imaging, battery removable | ||||
| Meas. Mode | MN/TT | ||||
| Freq. Range (Hz) | 1-8K | 0.01-6K | |||
| Freq. Selection | Preset frequency selection and intelligent frequency selection, analog + data filtering, options of 1-16 times stackings | ||||
| Resolution | 0.001-7K | ||||
| Acq. Time (s) | 120-7200 | 160-9000 | |||
| Battery | 900mA/H | ||||
| Main Unit Weight | 2.0 kg | 2.2 kg | |||
SERVING DOZENS OF COUNTRIES AROUND
THE WORLD, WELL RECEIVED BY USERS
PROFESSIONAL SERVICE TEAM
QUALIFICATION CERTIFICATE
Certificates and Awards: CE, ISO, China National High-tech Enterprise, China National Technical Invention Patent
DEVELOPMENT HISTORY
1973: Developed the domestic short-wire D75 electrical method
1977: Developed an aerial proton magnetometer
1981: Developed domestic resistivity DW83 electrical method
1988: Developed a multi-functional high-power electric method
2001: Developed the NEP series of natural electric field geophysical probes
2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function
