128-channel Cascade High-density MT Electromagnetic Instrument
  • Model:
  • Features:

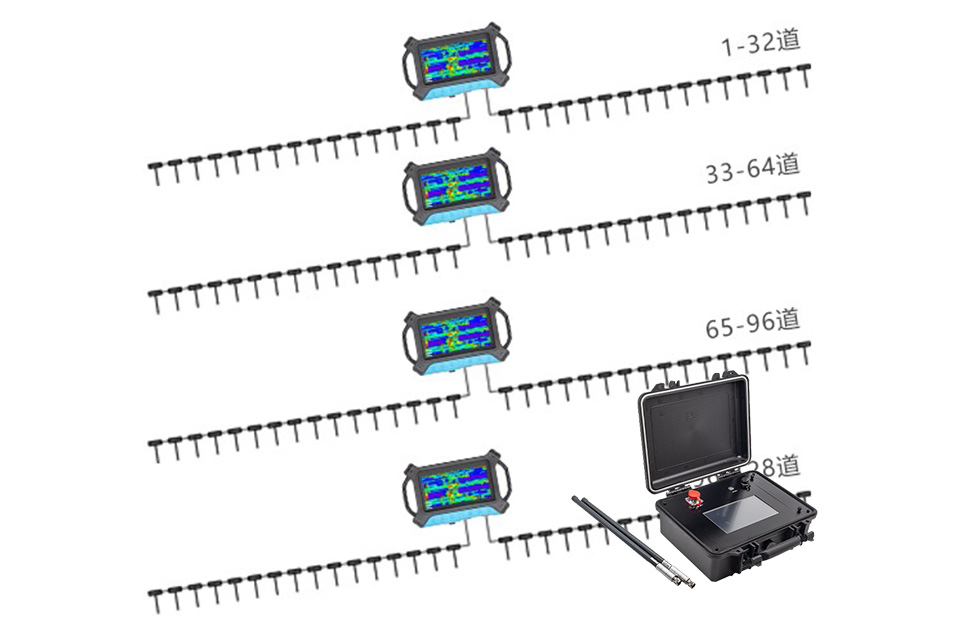

    Utilize multiple sets of 32-channel concatenated wireless assembly to from 64, 96, 128, 256, 512 cascaded high -density MT electrical instruments.
    The 96 or 128-channel cascade high-density MT electromagnetic instrument has powerful performance, which effectively solves the MT field source changing at any time and obtains a stable field source; the exploration depth reaches 5000, breaking through the depth limit of the traditional high-density electrical instrument; The number of measurement channels, electric field and electromagnetic field measurement modes are optional.




    49 Years Research and Development


    Stable       Accurate



    Free upgrading at the original price after purchasing within six months

    96 or 128-channel cascade high-density MT electromagnetic method instrument has powerful performance, highly integrated 32-channel high-density MT electromagnetic method measurement mode, which effectively solves the defects of MT field source changing at any time to obtain a stable field source, and the exploration depth reaches 5000 meters , Breaking through the depth limitation of the traditional high-density electrical method.







    Real-time
    Imaging
    Accurate
    Stable
    Multi-screen
    InterComm
    Simultaneous
    Measurement


    Real-time
    Imaging


    Accurate
    & Stable


    Multi-screen
    InterComm


    Simultaneous
    Measurement



    MEET YOUR VARIOUS NEEDS


    Treasure Exploration


    Mineral Exploration


    Water Source Survey


    Engineering Investigation


    Treasure Exploration: Exploration and survey for rare minerals such as jade, gems, ebony, crystals, etc

    Mineral Exploration: Detailed survey and general survey of metallic and non-metallic minerals

    Water Source Survey: It is used for detailed investigation and general survey exploration for finding groundwater

    Engineering Investigation: Steel, concrete pipelines, underground facilities detection



    SEVEN ADVANTAGES
    TO HELP YOU EXPLORE WORRY-FREE

    Automatic imaging

    01.png10.1 inch touch screen operation

    Learn to operate in 5 minutes

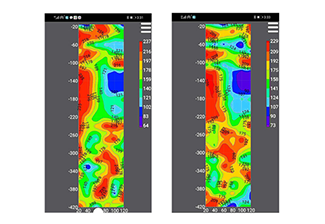

    Real-time 2D, 3D and curve images

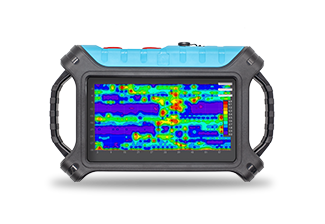

    Easy to operate

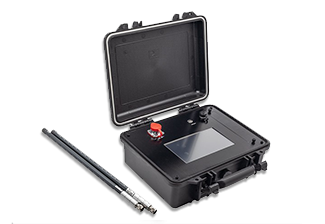

    02.pngWaterproof instrument case with cover, equipped with 11.6-inch high-definition host, and the instrument screen, mobile phone screen, and computer screen are interoperable, making it easy to operate in the field

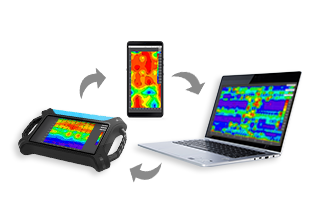

    Three screen intercommunication

    03.pngThe instrument screen, mobile phone screen, and computer screen can communicate with each other, wireless interaction

    Smart and flexible

    04.pngSolve the error of multiple movement measurements on a single channel, and measure multiple channels at the same time

    Accuracy increased by 50%

    Efficiency increased by 6 times

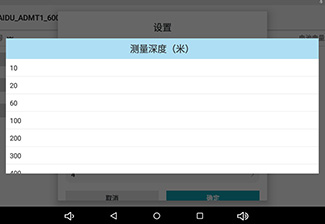

    Depth optional

    03.jpgChoose the depth you need, and provide a variety of depths for users to choose from within the maximum depth range

    Perfect after-sales

    10.pngReport by computer

    Expert online data analysis

    Patented product

    11.pngObtained multiple invention patents

    (Patent No.: ZL201310205318.9, ZL201110454869.X, ZL201320054153.5, ZL201320303919.9)


    10.1-inch large touch screen for instant imaging

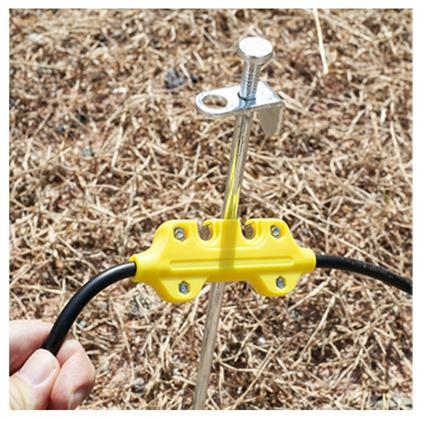

    Big upgrade of electrodes and line cards

    Mold forming, straight electrode, simple and convenient, more accurate measurement

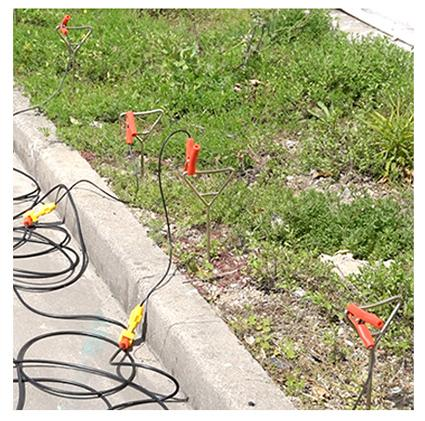

    Old style


    New style

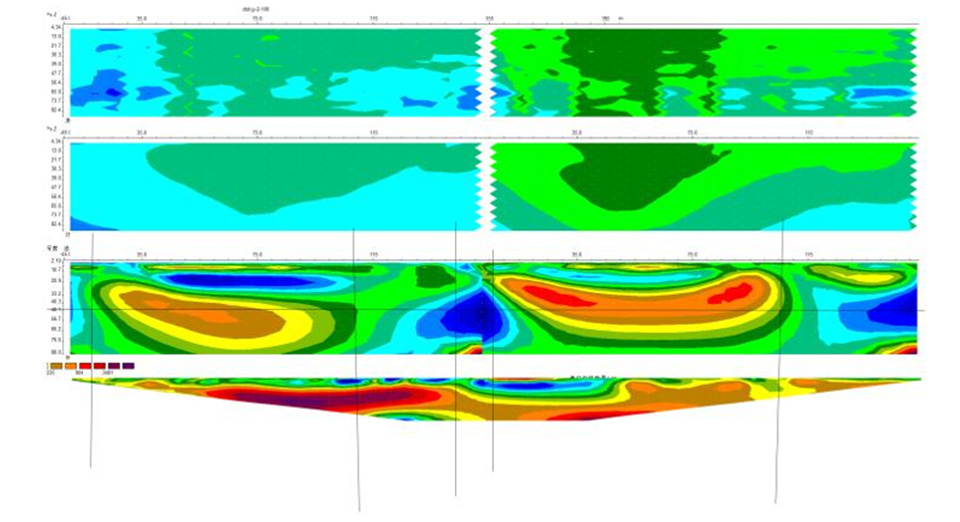

    Compared with traditional high-density inversion




    MAIN MODELS
    AND TECHNICAL PARAMETERS

    ModelADMT-300AX-32DADMT-600AX-32DADMT-1200AX-32DADMT-3000AX-32DADMT-5000AX-32D
    Max
    depth (m)
    ≤300≤600≤1200≤3000≤5000
    Channel
    input
    32 channels input simultaneous, electrode distance≤5m
    Channel
    option
    1-30
    Adjustable
    depth
    5/10/20/40/60/100/ 200/300/500/800/ 1200/2000/3000/4000/5000m
    Layer
    division
    60-200
    ConnectionSerial port, WiFi, Bluetooth 4.0, USB
    Display10.1 -inch, IPS wide Angle, 178° visual touch screen
    Operating
    system
    Android6.0.1, RAM 1GB, ROM 8GB (expandable 128GB)
    CPUARM Cortex-A7, 8-core CPU, 2.0Hz
    GPUOpenGL ES 2.0
    Main
    function
    Depth optional, channel number optional, real-time 2D/3D imaging, battery removable
    Measure
    model
    MN/TT
    Frequency
    range (hz)
    0.001-7K
    Frequency
    selective
    Preset frequency selection and intelligent frequency selection, analog + data filtering, 1-16 times stacking is optional
    Resolution0.001mV±2%0.001mV±1%
    Sampling
    time (s)
    120-9000280-14400
    Battery900mA/H1100mA/H
    Weight3kg



    SERVING DOZENS OF COUNTRIES AROUND
    THE WORLD, WELL RECEIVED BY USERS


    PROFESSIONAL TEAM


    QUALIFICATION CERTIFICATE

    Certificates and Awards: CE, ISO,  China National High-tech Enterprise, China National Technical Invention Patent


    DEVELOPMENT HISTORY

    1973: Developed the domestic short-wire D75 electrical method
    1977: Developed an aerial proton magnetometer
    1981: Developed domestic resistivity DW83 electrical method
    1988: Developed a multi-functional high-power electric method
    2001: Developed the NEP series of natural electric field geophysical probes
    2005: Completed the "High-Density Electrical Method" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2011: Completed the "Controllable Source Geodetic Electromagnetic Instrument (CSAMT)" project commissioned by the Institute of Geology and Geophysics, Chinese Academy of Sciences
    2013: Received the support of the Innovation Fund of the Ministry of Science and Technology, and passed the Shanghai High-tech Achievement Transformation Certification
    2017: Developed mobile phone water-finding instrument and geophysical instrument, supporting two-dimensional and three-dimensional automatic mapping of Android system
    2018: Independent research and development of 16-channel series products to solve the problem of natural electric field source changes, simple, efficient and precise
    2021: Water-finding instrument, geophysical prospecting instrument, aerial geophysical prospecting, earthquake advanced prediction system, etc. will be developed for cloud platform big data automatic analysis function
